快恢復模塊RYMB100CA60性能與應用
日月辰科技有限公司自主研發生產的快恢復模塊RYMB100CA60，采用雙基區P+PINN+結構，具有超快的恢復時間，模塊參數滿足各類大功率器件設計指標，且達到已達到了國外同類產品水平。隨著控制電路和不間斷電源、開關電源的應用不斷擴大，做為直接影響這些電路設計合理性和運行可靠性的高頻高壓快速恢復模塊，其重要性得到了市場重新認識，日月辰公司的RYMB100CA60快恢復模塊已經應用于逆變焊機和切割機中。
RYMB100CA60主要參數
| VRRM = 600 V | IFAVM = 200A (2x100A) |
| VF（typ）=1.4V （IF=100A, TVJ=25℃,Per Leg） | |
| trr < 68 ns （IF = 1 A; di/dt = 200 A/s） | |

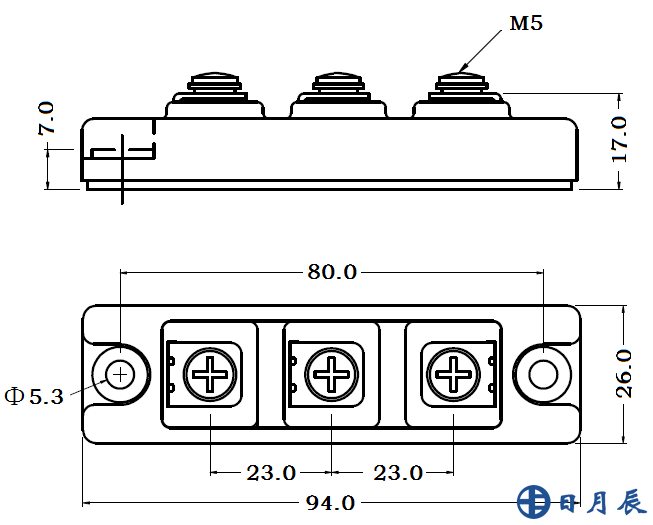

RYMB100CA60結構圖與尺寸
RYMB100CA60產品參數
| Absolute Maximum Ratings (Per Leg) | |||
| Symbol | Parameter | Value | Units |
| VRRM | Peak Repetitive Reverse Voltage | 600 | V |
| IF(AV) |
Diode Continuous Forward Current ( TC=100 ℃) |
100 | A |
| IFRM |
Repetitive Peak Surge Current (20kHz Square Wave) |
200 | A |
| IFSM |
Nonrepetitive Peak Surge Current (Halfwave 1 Phase 60Hz) |
1400 | A |
| TJ | Operating Junction Temperature Range | -40 to +150 | ℃ |
| TSTG | Storage Temperature Range | -40 to +150 | ℃ |
| Md |
Mounting torque Terminal connection torque (M6) |
1.5 1.5 |
Nm Nm |
| Weight | 120 | g | |
RYMB100CA60電規格參數
| ELECTRICAL SPECIFICATIONS (Per Leg) | ||||
| Symbol | Test Conditions | Typ. | Max. | Units |
| VF | IF=100A TC=25℃ | 1.4 | 1.6 | V |
| IF=100A TC=125℃ | 1.2 | 1.4 | V | |
| IRM | VR=600V TC=25℃ | 10 | µA | |
| VR=600V TC=125℃ | 100 | µA | ||
| trr |
IF = 1 A; di/dt = 200 A/μs; VR = 30 V; TVJ = 25℃ |
58 | 68 | ns |
| IRRM |
VR = 500 V; IF =150 A; di/dt = 480A/μs L=0.05μH; TVJ = 100℃ |
35 | 42 | A |
| RthJC | 0.75 | k/w | ||
| RthCK | 0.25 | k/w | ||

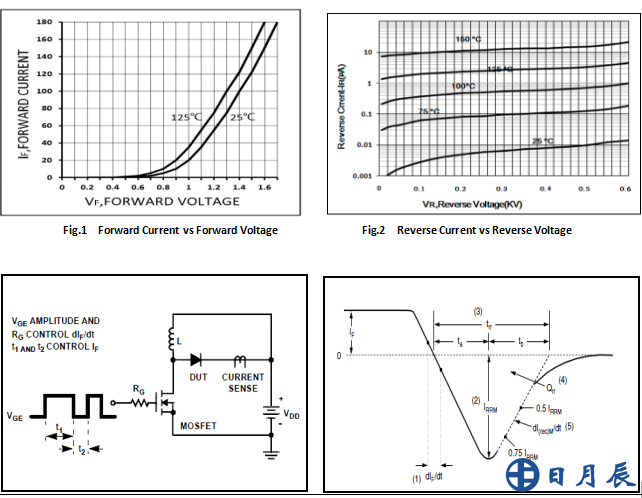

RYMB100CA60特性曲線
